Mã sản phẩm:

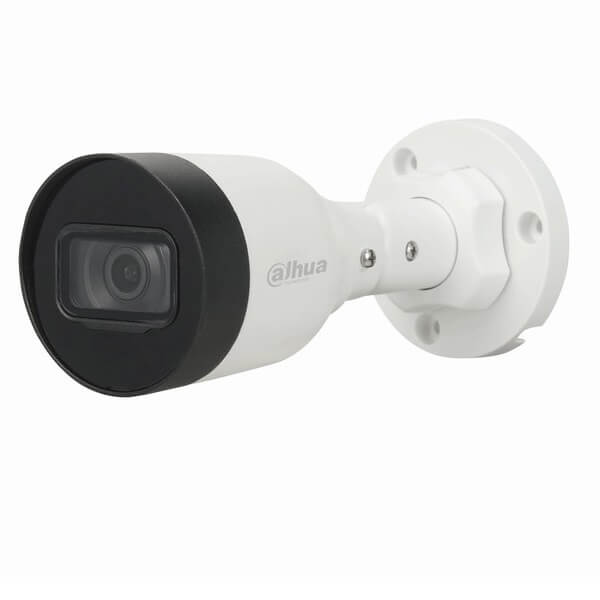

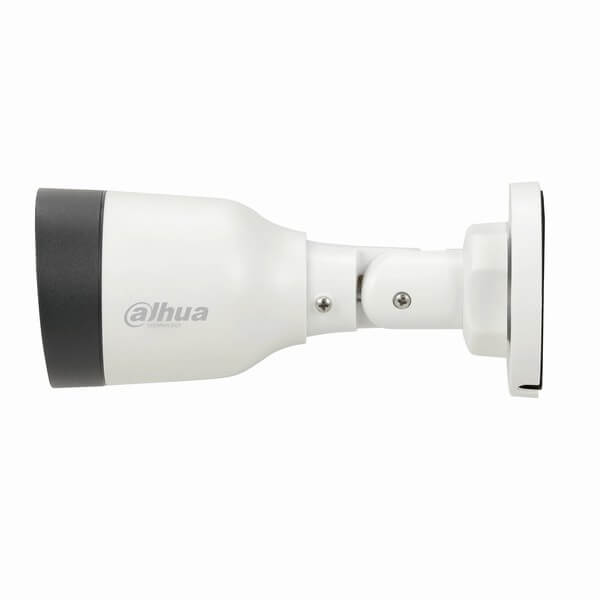

Camera IP 2.0 Megapixel DAHUA DH-IPC-HFW1230S1-S5
Features
2.0 Megapixel Entry IR Fixed-Focal Bullet Netwok Camera
Specifications
Camera | ||
Image Sensor | 1/2.8" CMOS | |
Max. Resolution | 1920 (H) × 1080 (V) | |
ROM | 16 MB | |
RAM | 64 MB | |
Scanning System | Progressive | |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | |
Min. Illumination | 0.01 Lux @F2.0 | |
S/N Ratio | >56 dB | |
Illumination Distance | 30 m (98.4 ft) | |
Illuminator On/Off Control | Auto/Manual | |
Illuminator Number | 1 (IR LED) | |
Pan/Tilt/Rotation Range | Pan: 0° to 360° |
|
Tilt: 0° to 90° | ||
Rotation: 0° to 360° | ||
Lens | ||
Lens Type | Fixed-focal | |
Lens Mount | M12 | |
Focal Length | 2.8 mm; 3.6 mm | |
Max. Aperture | 2.8 mm: F2.0 |
|
3.6 mm: F2.0 | ||
Field of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° |
|
3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° | ||
Iris Control | Fixed | |
Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) |
|
3.6 mm: 0.8 m (2.6 ft) | ||
DORI Distance | Lens |
|
2.8 mm | ||
3.6 mm | ||
Video | ||
Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | |
Smart Codec | Smart H.265+/Smart H.264+ | |
Video Frame Rate | Main Stream: |
|
1920 × 1080 (1 fps–25/30 fps) | ||
Sub stream: | ||
704 × 576 (1 fps–25 fps) | ||
704 × 480 (1 fps–30 fps) | ||
Stream Capability | 2 streams | |
Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
Bit Rate Control | CBR/VBR | |
Video Bit Rate | H.264: 32 kbps–6144 kbps |
|
H.265: 12 kbps–6400 kbps | ||
Day/Night | Auto (ICR)/Color/B/W | |
BLC | Yes | |
HLC | Yes | |
WDR | DWDR | |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |
Gain Control | Auto/Manual | |
Noise Reduction | 3D NR | |
Motion Detection | OFF/ON (4 areas, rectangular) | |
Region of Interest (RoI) | Yes (4 areas) | |
Smart Illumination | Yes | |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) | |
Mirror | Yes | |
Privacy Masking | 4 areas | |
Alarm | ||
Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception | |
Network | ||
Network | RJ-45 (10/100 Base-T) | |
SDK and API | Yes | |
Cyber Security | Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade | |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast | |
Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | |
User/Host | 6 (Total bandwidth: 36 M) | |
Storage | FTP | |
Browser | IE |
|
Chrome | ||
Firefox | ||
Management Software | Smart PSS; DSS; DMSS | |
Mobile Client | IOS; Android | |
Certification | ||
Certifications | CE-LVD: EN62368-1 |
|
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | ||
FCC: 47 CFR FCC Part 15, Subpart B | ||
Power | ||
Power Supply | 12V DC/PoE (802.3af) | |
Power Consumption | Basic power consumption: 1.4W (12V DC); 2.2W (PoE) |
|
Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE) | ||
Environment | ||
Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% | |
Storage Temperature | -40°C to +60°C (-40°F to +140°F) | |
Protection | IP67 | |
Structure | ||
Casing | Metal + plastic | |
Product Dimensions | 162.6 mm × Φ70 mm (6.4" × Φ2.8") | |
Net Weight | 0.22 kg (0.4 lb) | |
Gross Weight | 0.34 kg (0.7 lb) | |
Sản phẩm chính hãng DAHUA.
Thời gian bảo hành: 02 năm.
