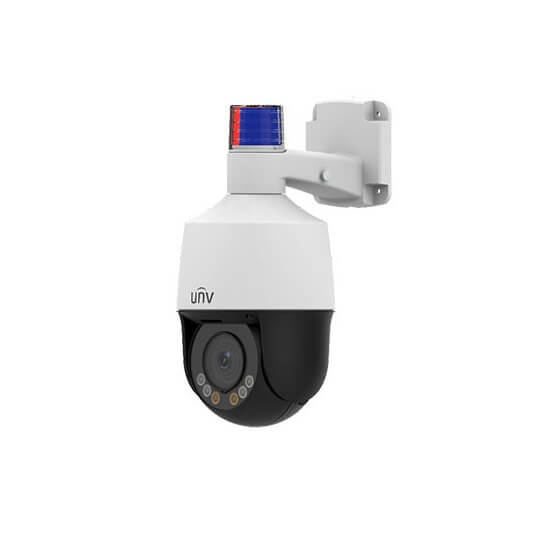

Camera IP PTZ LightHunter 2.0 Megapixel UNV IPC672LR-AX4DUPKC
Specifications
Model | IPC672LR-AX4DUPKC |
Camera | |
Sensor | 1/2.8-inch progressive scan, 2.0 megapixel, CMOS |
Lens | 2.8~12mm，AF automatic focusing and motorized zoom lens |
Angle of View (H) | 32.5°~95.7° |
Angle of View (V) | 18.4°~52.2° |
Angle of View (O) | 36.9°~100.8° |
Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
Minimum Illumination | Colour:0.001 lux (F1.6,AGC ON) |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52 dB |
IR Range | UP to 50m (164ft) |
Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Warm Light Range | UP to 10m (33ft) |
WDR | 120dB |
Video | |
Video Compression | Ultra 265,H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile |
Frame Rate | Main Stream:1080P (1920x1080):Max. 30 fps; 720P (1280×720):Max. 30 fps; |
Video Bit Rate | 128 Kbps~16 Mbps |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 24 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Vertical/Horizontal/180° |
Dewarping | Support |
HLC | Supported |
BLC | Supported |
Audio | |
Audio Compression | G.711 |
Suppression | Supported |
Sampling Rate | 8 KHZ |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
Client | EZStation |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Pan & Tilt | |
Pan Range | 345° |
Pan Speed | 0.1°/s ~ 50°/s |
Tilt Range | 90° |
Tilt Speed | 0.1° ~ 40°/s |
Number of Presets | 256 |
Patro | Preset patrol, Route patrol |
Interface | |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Built-in Mic | Supported |
Built-in Speaker | Supported |
Alarm Light | Supported |
General | |
Power | 12VDC±25%, PoE (IEEE802.3 at) |
Dimensions (Ø x H) | Φ133mmx269.4mm (Φ5.2-inch x 10.6-inch) |
Net Weight | 0.87 kg (1.92lb) |
Gross Weight | 1.13 kg (2.49lb) |
Material | The front half of the sphere: metal |
Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
Strorage Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
Surge Protection | 4KV |
Ingress Protection | IP66 |
Reset Button | Supported |
Sản xuất tại Trung Quốc.
Bảo hành 24 tháng.
