Mã sản phẩm:

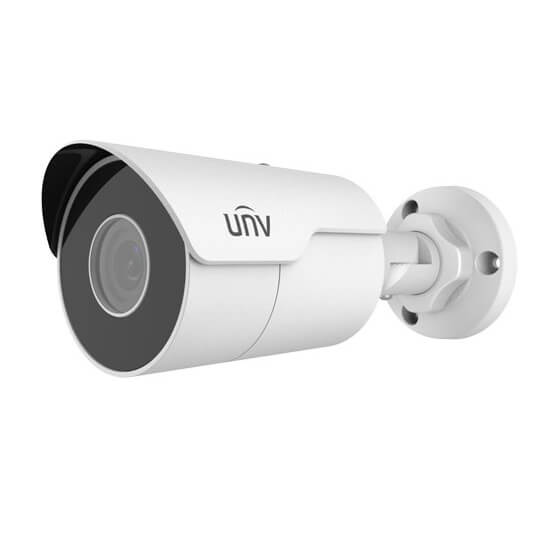

Camera IP StarLight 2.0 Megapixel UNV IPC2122LR5-UPF40M-F
Specifications
Model | IPC2122LR5-UPF40M-F |
Camera | |
Sensor | 1/2.7 inch, progressive scan, 2.0 megapixel, CMOS |
Lens | 4.0mm@F1.6 |
Angle of View(H) | 86.5° |
Angle of View (V) | 44.1° |
Angle of View (O) | 106.4° |
Adjustmentangle | Pan:0°~360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
Shutter | Auto/Manual, 1~1/100000 s |
Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) |
0 Lux with IR on | |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52dB |
IR Range | Up to 50m (164 ft) IR range |
Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Defog | Digital Defog |
WDR | DWDR |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 2.0 Megapixel (1920x1080): Max. 30 fps; |
Sub Stream: 4CIF (704×576): Max. 30 fps; | |
Video Bit Rate | 128 Kbps~6 Mbps |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
HLC | Supported |
BLC | Supported |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SSL, TLS |
Compatible Integration | ONVIF(Profile S), API |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Interface | |
Network | 10M/100M Base-TX Ethernet |
General | |
Power | 12VDC±25%, PoE (IEEE802.3 af) |
Power consumption: Max 6W | |
Dimensions | 191.3 x 72.6 x 70.9mm |
Weight | 0.5kg |
Material | Metal |
Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~95% RH (non-condensing) |
Ingress Protection | IP67 |
Sản xuất tại Trung Quốc.
Bảo hành 24 tháng.
